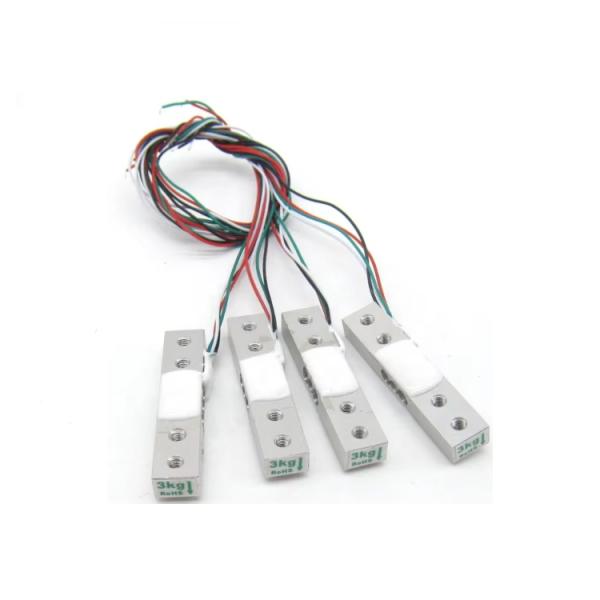

    Shenzhen Sensor and Control Company Presents SC616C 300g 500g 750g 1kg 2kg 3kg Mini Load Cell with Output mV/V

    Shenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cell

    Product Description

    Shenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cell

    Parameters

    ModelSC616C
    Capacity300g, 500g,750g, 1kg, 2kg, 3kg
    Comprehensive Error0.05 % F.S
    Output sensitivity300g: 0.7±0.15MV/V , 500g-750g: 0.8±0.15 MV/V, 1kg-3kg: 1.0±0.15 MV/V
    Non-linearity0.05 (%F.S.)
    Repeatability0.05 (%F.S.)
    Hysteresis0.05 (%F.S.)
    Creep0.1 [(3 min)%F.S.]
    Zero Output± 0.1 m V/V
    Temp. Effect on Zero0.2(%F.S/10℃)
    Temp. Effect on Span0.05(%F.S 10℃)
    Input Resistance1000 ± 10 Ω
    Output Resistance1050 ± 100 Ω
    Insulation Resistance≥ 2000 MΩ
    Excitation Voltage3~10Vdc
    Operating Temperature range-10~+40℃
    Four corner error± 0.1% F.S
    Safe overload120% F.S
    Ultimate Overload150% F.S
    Cable lengthΦ0.6 x 110 mm
    WiringExcitation +: Red, Excitation-: Black Signal+: Green, Signal- : White
    ApplicationJewelry scale, small weight scale, kitchen scale, force test

    Shenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cell

    Load cell Accessorie

    Shenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cell

    Shenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cell

    Related Products

    Shenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cell

    Packaging & Shipping

    Shenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cell

    Company Information

    Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.


    Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

    Shenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cellShenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cell

    Why Choose Us

    Shenzhen Sensor and Control company SC616C 300g 500g 750g 1kg 2kg 3kg high quality mini load cell

    FAQ

    1.How to place an order ?
    Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

    2.Does SNCoffer any discount ?
    Yes, if you buy large QTY, please contact us, we will give you a big discount.

    3.What terms of payment are available ?
    We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

    4.When will you arrange the production ?
    We will arrange the production immediately after receiving your payment.

    5.How do you ensure good product quality ?
    We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

    before shipping to our clients.

    6.Do you have warranty ?
    Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
